The high limit switch is a critical component in your furnace's operation, serving as a safety mechanism designed to prevent overheating. Located near the heat exchanger, this small yet vital device monitors the temperature within the furnace and ensures that it does not exceed safe levels. When the temperature reaches a predetermined threshold, the high limit switch activates, signaling the furnace to shut down or adjust its operation. This function is essential not only for maintaining efficiency but also for safeguarding your home from potential fire hazards.Understanding the role of the high limit switch is crucial for both homeowners and HVAC professionals.
A malfunctioning switch can lead to a range of issues, including frequent cycling of the furnace, inefficient heating, and even complete system failure. By recognizing the importance of this component, you can take proactive steps to ensure your heating system operates safely and effectively. Regular maintenance checks can help identify any signs of wear or malfunction before they escalate into more significant problems.Moreover, the high limit switch is just one part of a larger network of HVAC components that work together to provide comfort in your home. Each element plays a specific role in ensuring that your heating system functions optimally.
By understanding how these components interact, you can make informed decisions regarding maintenance and repairs, ultimately extending the lifespan of your furnace and enhancing its performance.
Signs of a Faulty High Limit Switch
Identifying a faulty high limit switch in your furnace is crucial for maintaining a safe and efficient heating system. Ignoring the symptoms of a malfunctioning switch can lead to more severe issues, including potential fire hazards or complete furnace failure. Here are some common signs that indicate your high limit switch may be experiencing problems:- Frequent Cycling: One of the most noticeable symptoms is when your furnace frequently turns on and off, a phenomenon known as short cycling. This occurs when the high limit switch fails to regulate the temperature properly, causing the furnace to overheat and shut down prematurely.
- Inconsistent Heating: If you notice that certain rooms in your home are significantly warmer or cooler than others, it could be a sign that the high limit switch is not functioning correctly.
This inconsistency can lead to discomfort and increased energy bills as your system works harder to maintain a balanced temperature.
- Failure to Start: A completely non-responsive furnace can indicate that the high limit switch has failed entirely. If your system does not turn on at all, it’s essential to check this component as part of your HVAC troubleshooting process.
- Unusual Noises: Strange sounds coming from your furnace, such as clicking or popping noises, may suggest that the high limit switch is malfunctioning. These noises can be indicative of electrical issues or mechanical failures within the unit.
- Overheating: If you notice that your furnace feels excessively hot to the touch or if there are signs of scorching around the unit, this could mean that the high limit switch is not shutting off the system when it should. This overheating poses a significant risk and should be addressed immediately.
If you experience any of these issues, it’s advisable to contact a qualified HVAC technician who can diagnose and resolve the problem effectively. Regular maintenance checks can also help catch these issues before they escalate, ensuring your heating system operates smoothly throughout the colder months.
The Importance of Regular Maintenance
Regular maintenance of your furnace's high limit switch is not just a good practice; it is essential for the longevity and efficiency of your entire HVAC system. The high limit switch plays a critical role in ensuring that your furnace operates within safe temperature limits, preventing overheating and potential hazards. However, its effectiveness can diminish over time due to wear and tear, making routine checks vital.One of the primary benefits of regular maintenance is the early detection of issues.During a routine inspection, a qualified technician can identify signs of wear on the high limit switch and other components of your HVAC system. This proactive approach allows for timely repairs or replacements, which can save you from more extensive and costly repairs down the line.Moreover, regular maintenance helps to enhance the overall efficiency of your furnace. A well-maintained high limit switch ensures that your furnace operates at optimal performance, which can lead to lower energy bills. When the switch functions correctly, it helps maintain consistent temperatures throughout your home, reducing the workload on your heating system.In addition to improving efficiency, routine maintenance also significantly enhances safety.
A malfunctioning high limit switch can lead to overheating, which poses a fire risk. By scheduling regular inspections, you can ensure that this critical component is functioning properly, thereby protecting your home and family from potential dangers.Furthermore, regular HVAC upkeep extends beyond just the high limit switch. It encompasses a comprehensive check of all furnace components, including filters, blowers, and ductwork. Keeping these elements in good condition not only improves air quality but also contributes to the overall health of your HVAC system.In conclusion, prioritizing regular maintenance for your furnace's high limit switch and the entire HVAC system is crucial for safety, efficiency, and longevity.
By investing in routine checks and addressing any issues promptly, you can ensure that your heating system remains reliable and effective for years to come.
How to Replace a High Limit Switch
Replacing a high limit switch in your furnace is a task that can be accomplished by homeowners with some basic DIY skills. However, it is essential to approach this task with caution and preparation. Below is a step-by-step guide to help you through the process.Safety Precautions
- Turn Off Power: Before starting any work on your furnace, ensure that the power supply is completely turned off. Locate the circuit breaker for your furnace and switch it off to prevent any electrical hazards.
- Allow the Furnace to Cool: If your furnace has been running, give it time to cool down.
This will help avoid burns or injuries while working on the unit.
- Wear Protective Gear: Use safety goggles and gloves to protect yourself from any debris or sharp edges inside the furnace.
Tools Needed
- Screwdriver (flathead and Phillips)
- Multimeter (for testing electrical connections)
- Replacement high limit switch (ensure it matches your furnace model)
- Wire cutters/strippers
Step-by-Step Replacement Process
- Access the Furnace: Remove the access panel of your furnace. This is usually secured with screws, so use your screwdriver to take them out carefully.
- Locate the High Limit Switch: The high limit switch is typically found near the heat exchanger. It may be mounted on the side or back of the furnace.
- Disconnect Wires: Take note of how the wires are connected to the old switch. You can take a picture for reference.
Carefully disconnect the wires from the old high limit switch using your wire cutters or strippers.
- Remove the Old Switch: Unscrew or unclip the old high limit switch from its mounting position and remove it from the furnace.
- Install the New Switch: Position the new high limit switch in place and secure it with screws or clips as required. Ensure it is firmly attached.
- Reconnect Wires: Using your reference photo, reconnect the wires to the new high limit switch, ensuring that they are securely fastened.
- Replace Access Panel: Once everything is connected, replace the access panel and secure it with screws.
- Restore Power: Turn on the circuit breaker to restore power to your furnace. Test the system by setting your thermostat and observing if it operates correctly.
Cost Considerations for Replacement
When considering the replacement cost of a high limit switch, it is essential to understand the various factors that contribute to the overall expense.Typically, the cost of replacing a high limit switch can range from $100 to $250 , depending on several variables such as the type of furnace, the complexity of the installation, and local labor rates.In addition to the price of the switch itself, which can vary based on brand and specifications, homeowners should also factor in labor costs. Hiring a qualified technician for HVAC installation or repair can add an additional $50 to $150 to the total cost. This investment is crucial, as improper installation can lead to further complications and additional expenses down the line.While these costs may seem significant at first glance, they pale in comparison to the potential damages that can arise from neglecting a faulty high limit switch. A malfunctioning switch can lead to overheating, which poses serious risks such as:
- Fire Hazards: Overheating can ignite nearby materials, leading to devastating fires.
- Property Damage: Excessive heat can damage not only the furnace but also surrounding structures and belongings.
- Increased Energy Bills: An inefficient furnace will work harder to maintain temperature, resulting in higher utility costs.
- Health Risks: Poor air quality and potential carbon monoxide leaks can endanger your family’s health.
This includes not only fixing or replacing the furnace but also addressing any collateral damage caused by overheating.In conclusion, while the upfront costs associated with replacing a high limit switch may seem daunting, they are a small price to pay for ensuring safety and efficiency in your home. By prioritizing timely replacement and regular maintenance, you can avoid much larger expenses and protect your home from potential hazards.
FAQs About High Limit Switches and HVAC Systems
Understanding the role of a high limit switch in your HVAC system is crucial for maintaining a safe and efficient heating environment. Here are some frequently asked questions that can help clarify its importance and functionality.What is a high limit switch?

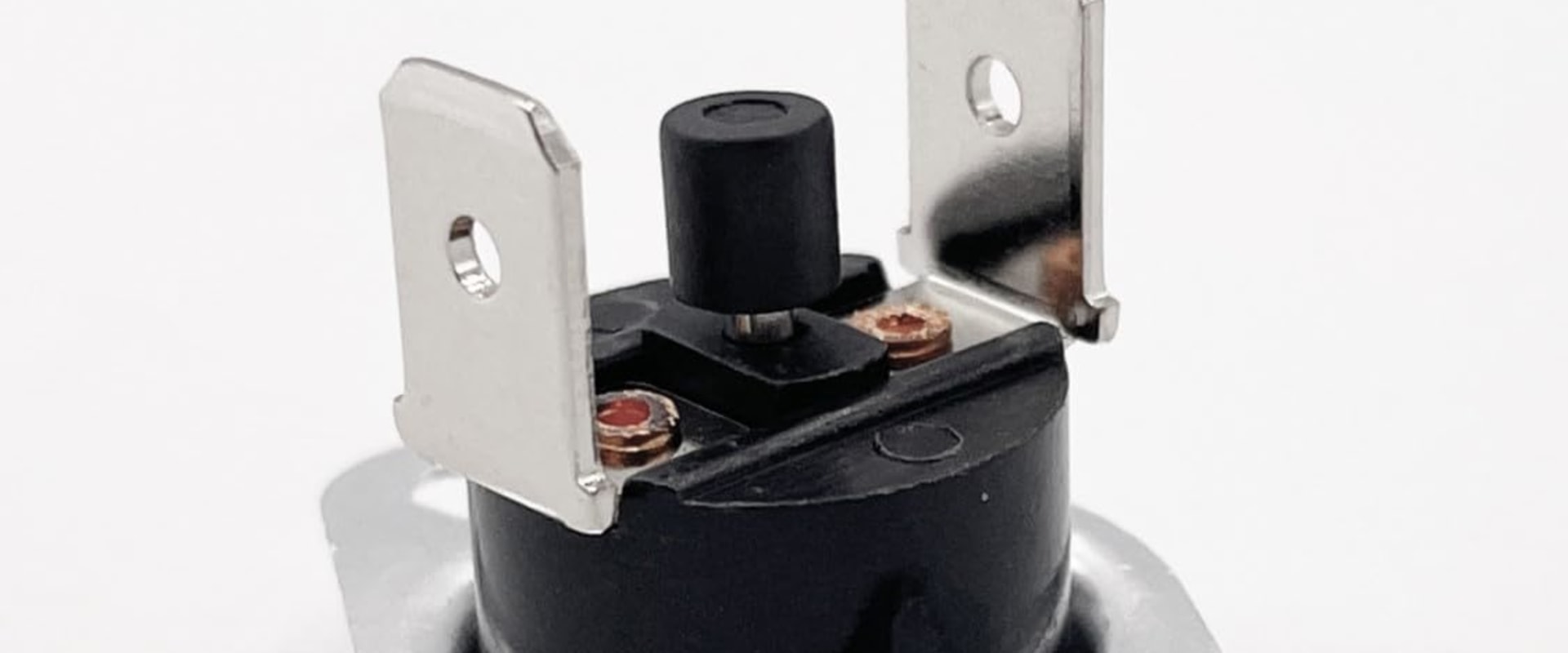

A high limit switch is a safety device located within your furnace that monitors the temperature of the heat exchanger. Its primary function is to prevent overheating by shutting off the furnace when it detects that the temperature has exceeded a predetermined limit.This helps to avoid potential hazards such as fires or damage to the furnace itself.
How do I know if my high limit switch is faulty?
There are several signs that may indicate a malfunctioning high limit switch:- Frequent cycling: If your furnace turns on and off repeatedly in short intervals, this could be a sign of a faulty switch.
- No heat: If your furnace fails to produce heat altogether, it may be due to a failed high limit switch.
- Overheating: If you notice that your furnace is excessively hot to the touch, it may not be shutting off as it should.
Can I replace the high limit switch myself?
While some homeowners may feel comfortable performing basic maintenance on their HVAC systems, replacing a high limit switch can be complex and requires knowledge of electrical systems. It is generally recommended to hire a qualified HVAC technician for this task to ensure safety and proper installation.How often should I check my high limit switch?
Regular maintenance is key to ensuring your HVAC system operates efficiently. It’s advisable to have your furnace inspected at least once a year, ideally before the heating season begins. During this inspection, the technician will check the high limit switch along with other critical components of your system.What are the consequences of ignoring a faulty high limit switch?
Neglecting a faulty high limit switch can lead to serious consequences, including:- Increased energy costs: An inefficient furnace will work harder, leading to higher utility bills.
- Potential fire hazards: Overheating can cause fires or damage other components of your HVAC system.
- Expensive repairs: Ignoring small issues can lead to larger, more costly repairs down the line.
Conclusion: Ensuring Safety and Efficiency in Your HVAC System
In summary, the significance of regularly replacing your furnace's high limit switch cannot be overstated.This small yet essential component plays a pivotal role in maintaining the safety and efficiency of your HVAC installation. By ensuring that your high limit switch is functioning correctly, you are not only protecting your home from potential hazards such as overheating and fires but also enhancing the overall performance of your heating system.Throughout this article, we have explored various aspects of the high limit switch, including its function, signs of failure, and the importance of routine maintenance. Here are some key takeaways:
- Safety First: The high limit switch acts as a safeguard against overheating, which can lead to dangerous situations. Regular checks and timely replacements are crucial for preventing accidents.
- Efficiency Matters: A malfunctioning high limit switch can cause your furnace to cycle on and off frequently, leading to increased energy consumption and higher utility bills.
Replacing it ensures that your system operates smoothly and efficiently.
- Cost-Effectiveness: While the cost of replacing a high limit switch may seem significant, it is a small price to pay compared to the potential expenses associated with furnace repairs or fire damage.
- Professional Maintenance: Engaging a qualified technician for regular maintenance checks can help identify issues early on, including problems with the high limit switch. This proactive approach can save you time and money in the long run.
